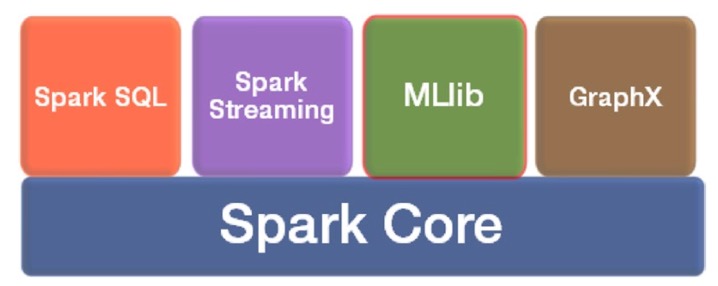

What are the components of Apache Spark?

Spark Core

At the foundation of Apache Spark lies Spark Core, which is responsible for the essential functionalities of the system such as task scheduling, memory management, fault recovery, and interactions with storage systems. Spark Core provides the basic abstraction known as Resilient Distributed Datasets (RDDs), which are immutable, distributed collections of objects that can be processed in parallel. All other components in Spark are built on top of Spark Core, and it is this core engine that ensures efficient and fault-tolerant execution of distributed computing tasks across a cluster.

Spark SQL

Spark SQL is a module in Apache Spark designed for working with structured data. It allows users to run SQL-like queries using either SQL syntax or more modern DataFrame and Dataset APIs, offering both flexibility and high performance. Spark SQL is widely used for data transformation, integration, and analysis, and it can read data from a wide range of sources including Hive, Parquet, Avro, JSON, and JDBC databases. Because it optimizes queries through a cost-based optimizer called Catalyst and utilizes a columnar memory format called Tungsten, Spark SQL achieves performance comparable to traditional relational databases while operating at scale.

Spark Streaming

Spark Streaming extends the core capabilities of Apache Spark to support real-time data processing. It enables applications to process live data streams from sources such as Kafka, Flume, and socket connections. Spark Streaming operates by dividing the incoming data stream into small batches, which are then processed using the Spark engine. This micro-batching approach allows for scalable and fault-tolerant stream processing using the same APIs and execution model as batch jobs. Spark Streaming is ideal for use cases such as log processing, fraud detection, and real-time analytics dashboards.



MLlib (Machine Learning Library)

MLlib is Spark’s scalable machine learning library designed to run common learning algorithms and statistical methods on distributed data. It includes algorithms for classification, regression, clustering, collaborative filtering, and dimensionality reduction. MLlib also provides tools for feature extraction, transformation, and constructing complex machine learning pipelines. Because it runs in-memory on distributed data, MLlib offers a significant speed advantage over traditional single-machine learning libraries, making it well-suited for building predictive models on large datasets.

GraphX

GraphX is a distributed graph analytics framework. It is a Spark library that extends Spark for large-scale graph processing. It provides a higher-level abstraction for graphs analytics than that provided by the Spark core API. GraphX provides both fundamental graph operators and advanced operators implementing graph algorithms such as PageRank, strongly connected components, and triangle count. It also provides an implementation of Google‘s Pregel API. These operators simplify graph analytics tasks.

GraphX allows the same data to be operated on as a distributed graph or distributed collections. It provides collection operators similar to those provided by the RDD API and graph operators similar to those provided by specialized graph analytics libraries. Thus, it unifies collections and graphs as first-class composable objects. A key benefit of using GraphX is that it provides an integrated platform for complete graph analytics workflow or pipeline. A graph analytics pipeline generally consists of the following steps:

a)  Read raw data.

b)  Preprocess data (e.g., cleanse data).

c)  Extract vertices and edges to create a property graph.

d)  Slice a subgraph.

e)  Run graph algorithms.

f)  Analyze the results.

g)  Repeat steps e and f with another slice of the graph.
